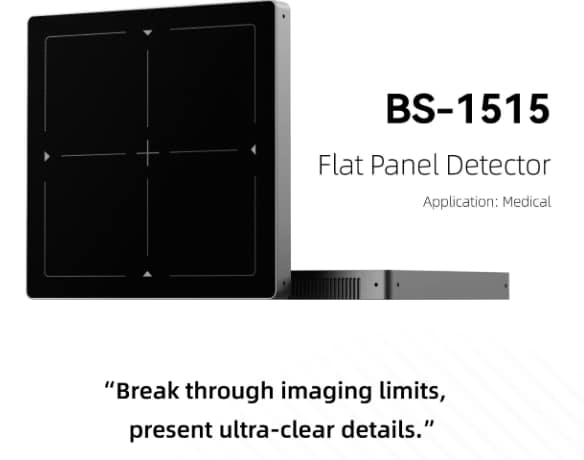

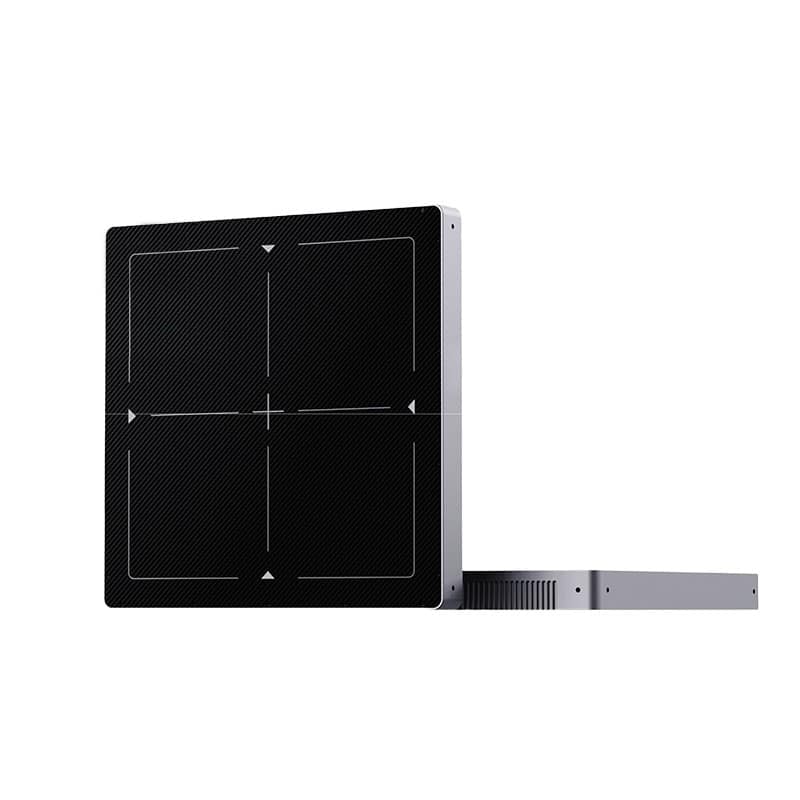

The BS-1515 Flat Panel Detector represents a transformative advancement in medical imaging technology, specifically engineered for precision diagnostics. By harnessing state-of-the-art CMOS sensor innovation, it delivers exceptional image clarity and detail, enabling clinicians to visualize even the most intricate anatomical structures with confidence. Designed with a compact, lightweight form factor and robust performance, this detector seamlessly integrates into diverse clinical workflows, offering reliable, high-resolution imaging for enhanced diagnostic accuracy and patient care. Ideal for modern dental and medical applications, the BS-1515 sets a new standard in portable, high-performance imaging solutions.
Key Features
- Advanced CMOS Sensor Technology: Employs cutting-edge CMOS innovation to provide high-resolution, low-noise image capture, ensuring superior detail and diagnostic confidence in every scan.
- Exceptional Image Clarity: Features a high-performance Perovskite/CsI scintillator that enhances contrast and resolution, achieving a limited resolution of 10.1 lp/mm for precise visualization of fine structures.
- Fast and Adaptive Imaging: Supports flexible frame rates of 25fps and 50fps (with 2×2 binning), enabling efficient imaging for both static diagnostics and dynamic procedural guidance.
- Compact and Portable Design: With dimensions of 185 x 183 x 42 mm and a lightweight 2kg build, it offers easy maneuverability and seamless integration into space-constrained clinical environments.
- High-Speed Data Connectivity: Equipped with a GigE interface for rapid, reliable image data transfer, facilitating smooth workflow integration and real-time analysis.
- Robust Environmental Tolerance: Engineered to operate reliably across a wide range of conditions (5~35℃ operating temperature, 20~90% RH humidity), ensuring consistent performance in varied clinical settings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Detector Model | BS-1515 |
| Sensor Type | CMOS |
| Scintillator | Perovskite / CsI |
| Dimensions (L x W x H) | 185 x 183 x 42 mm |
| Weight | 2 kg |
| Power Consumption | 12 W |
| Active Area | 150 x 150 mm |
| Pixel Size | 49.5 μm |
| Pixel Matrix | 3072 x 3072 |
| Frame Rate | 25 fps / 50 fps (2×2 binning) |
| Limited Resolution | 10.1 lp/mm |
| A/D Conversion | 16 bit |
| Data Interface | GigE |
| Operating Temperature | 5 ~ 35°C |
| Storage Temperature | -10 ~ 50°C |
| Operating Humidity | 20 ~ 90% RH (Non-condensing) |
| Storage Humidity | 10 ~ 95% RH (Non-condensing) |
Recommended Applications
The BS-1515 Flat Panel Detector is designed for a wide spectrum of medical imaging needs, offering versatility and precision in various clinical scenarios. Its high performance makes it an ideal choice for:
- Dental and Maxillofacial Imaging
- General Radiography and Fluoroscopy
- Surgical and Interventional Guidance
- Orthopedic and Trauma Imaging
- Veterinary Diagnostic Applications
The BS-1515 Flat Panel Detector combines innovation, reliability, and user-centric design to empower healthcare professionals with superior imaging tools. By delivering unmatched clarity and efficiency, it enhances diagnostic accuracy, streamlines clinical workflows, and ultimately contributes to better patient outcomes. Embrace the future of medical imaging with technology that breaks through traditional limits.
