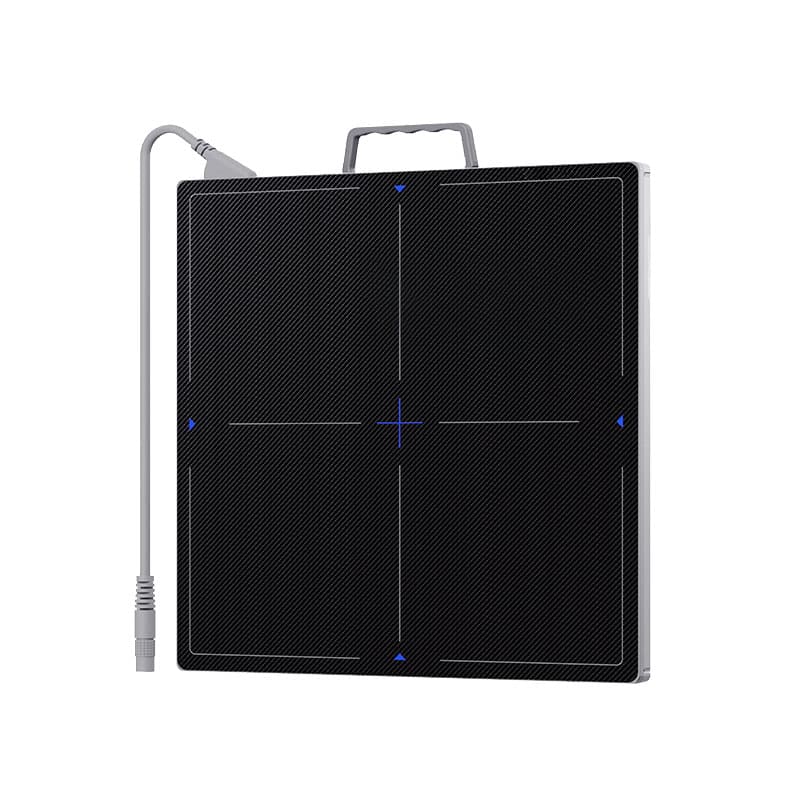

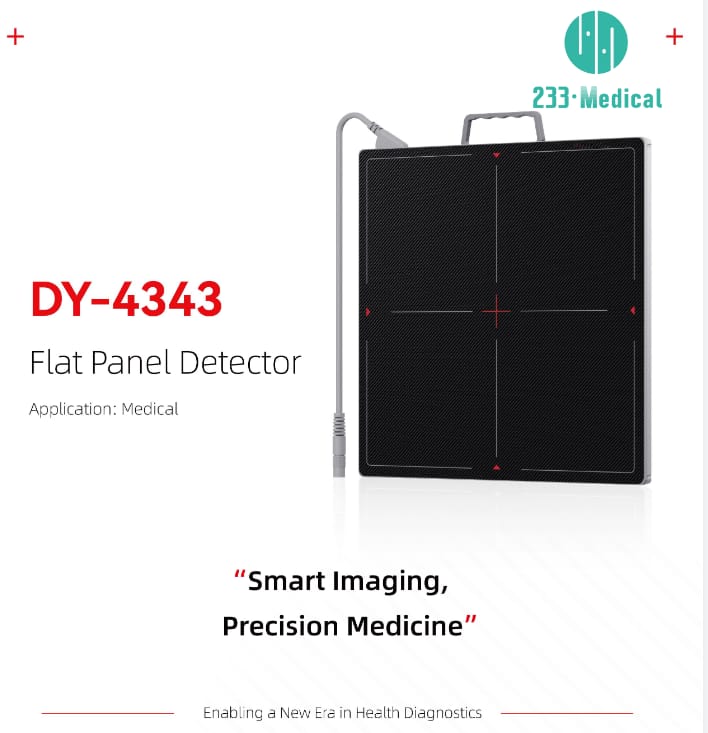

The DY-4343 Flat Panel Detector embodies the synergy of intelligent technology and clinical precision, engineered to empower a new era in health diagnostics. Its core promise, “Smart Imaging, Precision Medicine,” is realized through a high-performance a-Si sensor and advanced Perovskite/CsI scintillator, delivering the exceptional image clarity and detail required for confident diagnosis. Designed for demanding medical environments, this detector combines a robust, large-format active area with a streamlined profile and integrated handle for versatile positioning. From rapid image acquisition to reliable GigE data transmission, the DY-4343 is the intelligent choice for clinicians committed to advancing patient care through superior visualization.
Key Features
- Smart Imaging for Precision Medicine: Designed as a cornerstone for precision diagnostics, delivering the high-fidelity image data essential for accurate treatment planning and patient-specific care pathways.
- Rapid Workflow Integration: Achieves a swift image output time of 1 second, enabling quick assessment and decision-making to enhance patient throughput and clinical efficiency.
- High-Resolution, Large-Format Sensor: Features a substantial 430 x 430 mm active area with a 3072 x 3072 pixel matrix, providing extensive anatomical coverage without compromising on fine-detail resolution (3.6 lp/mm).
- Advanced Scintillator Technology: Utilizes a high-performance Perovskite/CsI scintillator coupled with an a-Si sensor for superior detective quantum efficiency (DQE), resulting in images with excellent contrast and low noise.
- Ergonomic and Durable Design: Boasts a slim 15mm profile with an integrated handle for easy portability, while its construction ensures reliable operation in busy clinical settings.
- Seamless & Reliable Connectivity: Equipped with a Gigabit Ethernet (GigE) interface for fast, stable, and high-fidelity image data transfer to PACS or workstations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Detector Model | DY-4343 |
| Sensor Type | a-Si |
| Scintillator Type | Perovskite / CsI |
| Dimensions (L x W x H) | 460 x 460 x 15 mm |
| Weight | 4.2 kg |
| Power Consumption | 12 W |
| Active Area | 430 x 430 mm |
| Pixel Size | 139 μm |
| Pixel Matrix | 3072 x 3072 |
| Image Output Time | 1 s |
| Limited Resolution | 3.6 lp/mm |
| A/D Conversion | 16 bit |
| Data Interface | GigE |
| Operating Temperature | 5 ~ 35 ℃ |
| Storage Temperature | -10 ~ 50 ℃ |
| Operating Humidity | 20 ~ 90% RH (Non-condensing) |
| Storage Humidity | 10 ~ 95% RH (Non-condensing) |
Recommended Applications
As a dedicated medical imaging detector, the DY-4343 is ideally suited for a wide range of radiographic applications that demand both large-area coverage and high detail, including:
- General Radiography (Chest, Abdominal, Orthopedic)
- Trauma and Emergency Imaging
- Table-Based & Upright Imaging Systems
- Veterinary Radiology (Large Animal)
- Specialized Clinical Imaging Procedures
The DY-4343 Flat Panel Detector is more than an imaging device; it’s a commitment to “Smart Imaging, Precision Medicine.” By delivering reliable performance, intelligent design, and diagnostic-grade image quality, it empowers healthcare providers to visualize with confidence and usher in a new era of advanced health diagnostics.
