The Tiray NDT4343D Industrial Flat Panel Detector is engineered as a “Pioneer in Full-Format Clarity for Smart Manufacturing,” dedicated to revolutionizing industrial inspection with its “Full-Format Clear Imaging Empowers Intelligent Manufacturing” promise. Featuring a sleek black panel with white grid lines and red crosshair markers for precise positioning, it combines advanced a-Si sensor technology with versatile Perovskite/CsI/GOS scintillators. Optimized for industrial casting/welding part inspection and industrial CT applications, its dynamic high-definition imaging and robust performance empower manufacturers to achieve real-time quality control and elevate production precision.
Key Features
- Full-Format Clear Imaging for Smart Manufacturing: Delivers unobstructed 430.08×430.08mm effective imaging area, capturing entire castings, weldments, or CT slices in a single scan to enable comprehensive defect analysis and process optimization.
- Dynamic High-Definition Imaging, Real-Time Industrial Empowerment: Supports flexible frame rates of 4 fps (standard) and 12 fps (2×2 binning), balancing high-resolution detail with efficient dynamic inspection for real-time quality feedback in production lines.
- Advanced a-Si Sensor & Multi-Scintillator Versatility: Utilizes amorphous Silicon (a-Si) sensor for low-noise, high-sensitivity imaging, paired with configurable Perovskite/CsI/GOS scintillators to optimize detection across 250KV/450KV X-ray energy ranges.
- Industrial-Grade Durability for Harsh Environments: Built with a compact 470x470x35mm housing, weighing 9.2kg (lightweight) to 17kg (robust variant), and designed to operate reliably in factory conditions (5~35°C, 20~80% RH non-condensing).
- Seamless Integration with Industrial Systems: Equipped with Gigabit Ethernet interface for stable, high-speed data transfer to CT systems or analysis software, ensuring smooth workflow integration for casting/welding inspection.

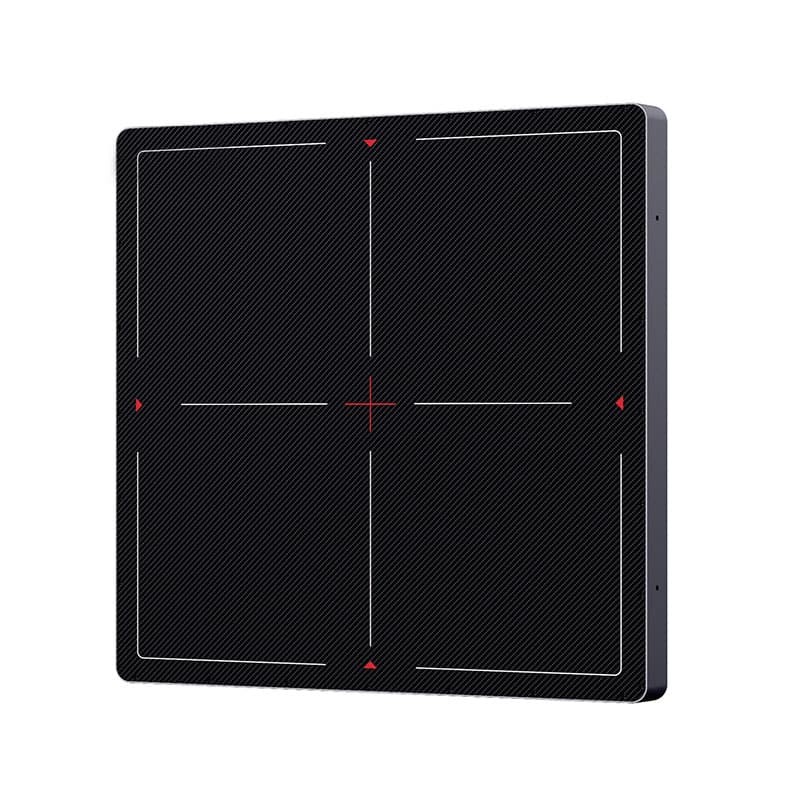

- Precision Positioning for Critical Inspections: Features red crosshair markers and white grid lines on the black panel for accurate component alignment, essential for industrial CT and complex weldment analysis.
Technical Specifications
| Parameter | Specification |
|---|---|
| Detector Model | NDT4343D |
| Detector Type | a-Si |
| Scintillator Type | Perovskite / Cesium Iodide (CsI) / GOS |
| Dimensions (L x W x H) | 470 x 470 x 35 mm |
| Weight | Approx. 9.2 kg / 17 kg |
| Power Consumption | 12 W |
| Effective Imaging Area | 430.08 x 430.08 mm |
| Pixel Size | 139 μm |
| Pixel Matrix | 3072 x 3072 |
| Frame Rate | 4 fps / 12 fps (2×2 binning) |
| Limiting Spatial Resolution | 3.6 lp/mm |
| A/D Conversion | 16 bit |
| Data Interface | Gigabit Ethernet |
| Operating Temperature | 5 ~ 35 °C |
| Storage Temperature | 0 ~ 50 °C |
| Operating Humidity | 20 ~ 80% RH (Non-condensing) |
| Storage Humidity | 10 ~ 90% RH (Non-condensing) |
| Energy Range | 250 KV / 450 KV |
Primary Industrial Applications
The Tiray NDT4343D is purpose-built for high-precision industrial inspection, specializing in:
- Industrial Casting & Welding Part Defect Detection (e.g., porosity, cracks, inclusions)
- Industrial CT (Computed Tomography) for 3D Internal Structure Analysis
- Large-Component Quality Assurance in Foundries & Fabrication Plants
- Weld Seam Integrity Inspection for Pressure Vessels & Pipelines
- Material Density & Thickness Variation Analysis in Heavy Industry
As a “Pioneer in Full-Format Clarity for Smart Manufacturing,” the Tiray NDT4343D transforms industrial inspection with unmatched imaging coverage and dynamic performance. By combining full-format clear imaging with real-time empowerment, it enables manufacturers to detect defects early, optimize processes, and elevate intelligent manufacturing—truly making “full-format clear imaging empower intelligent manufacturing, dynamic high-definition imaging empower industry in real time.”
