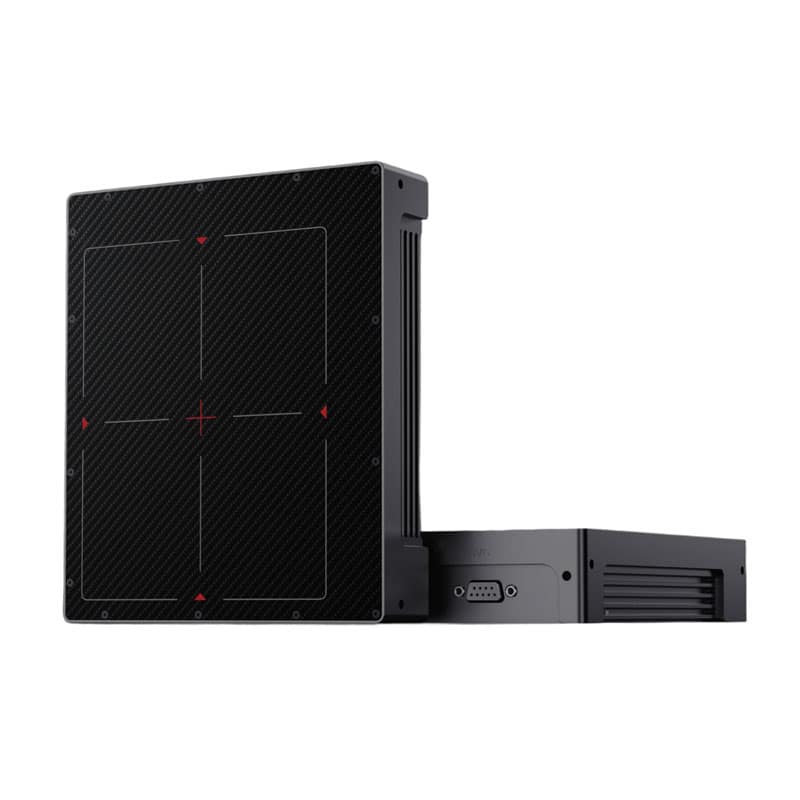

The NDT1613D Industrial Flat Panel Detector is engineered to deliver precise, high-efficiency imaging for demanding non-destructive testing (NDT) applications. Its lightweight and streamlined design, encapsulated in a robust housing with carbon fiber-like texturing, facilitates easy integration and handling. The detector excels in “rapid inspection,” powered by advanced a-Si sensor technology, enabling quick and detailed visualization of internal structures. From electronic components to industrial castings, the NDT1613D ensures “every detail is detected with precision,” providing the reliable, high-resolution image data essential for stringent quality control and defect analysis in modern manufacturing.
Key Features
- Lightweight Design for Agile Operation: Engineered with a compact form factor (166 x 196 x 40 mm) and optimized weight, the detector allows for easy positioning and integration into various inspection setups, enhancing workflow flexibility.
- Fast Detection for High Throughput: Supports a high frame rate of 30 fps (up to 60 fps with 2×2 binning), enabling rapid image acquisition. This is critical for production line efficiency and dynamic or real-time inspection scenarios.
- Precision in Every Detail: With a pixel size of 125μm and a limiting spatial resolution of 4.0 lp/mm, the detector captures fine details and subtle defects, ensuring comprehensive and accurate assessment of components.
- Versatile Scintillator Options: Configurable with Perovskite, Cesium Iodide (CsI), or GOS scintillators, allowing optimization for different X-ray energy levels and specific material inspection requirements.
- Robust Industrial Connectivity: Features a Gigabit Ethernet (GigE) interface for high-speed, stable, and reliable data transmission, seamlessly integrating with industrial PCs and analysis software.
- Broad Energy Range Compatibility: Capable of operating effectively across a wide energy spectrum (160 kV to 320 kV), making it suitable for inspecting a diverse range of material densities and thicknesses.
Technical Specifications
| Parameter | Specification |
|---|---|
| Detector Model | NDT1613D |
| Detector Type | a-Si |
| Scintillator Type | Perovskite / CsI / GOS |
| Dimensions (L x W x H) | 166 x 196 x 40 mm |
| Weight | 2 kg / 4.5 kg |
| Power Consumption | 12 W |
| Effective Imaging Area | 160 x 128 mm |
| Pixel Size | 125 µm |
| Pixel Matrix | 1280 x 1024 |
| Frame Rate | 30 fps / 60 fps (with 2×2 binning) |
| Limiting Spatial Resolution | 4.0 lp/mm |
| A/D Conversion | 16 bit |
| Data Interface | Gigabit Ethernet (GigE) |
| Operating Temperature | 5 ~ 35 °C |
| Storage Temperature | 0 ~ 50 °C |
| Operating Humidity | 20 ~ 80% RH (Non-condensing) |
| Storage Humidity | 10 ~ 90% RH (Non-condensing) |
| Energy Range | 160 kV / 320 kV |
Primary Application Fields
The NDT1613D is an ideal solution for precision non-destructive testing across a wide spectrum of industrial sectors, including:
- Electronics & PCB (Printed Circuit Board) Inspection
- BGA (Ball Grid Array) and Semiconductor Package Analysis
- Automotive Component and Light Alloy Casting Inspection
- Battery Cell & Module Quality Control (NDT)
- Welding Defect Detection and Aerospace Component Inspection
The NDT1613D Industrial Flat Panel Detector combines agility, speed, and precision to meet the critical demands of modern quality assurance. By enabling “Lightweight Design, Fast Detection” and ensuring “Precise Inspection of Every Detail,” it empowers manufacturers to achieve higher throughput, superior defect detection rates, and ultimately, uncompromising product quality.
