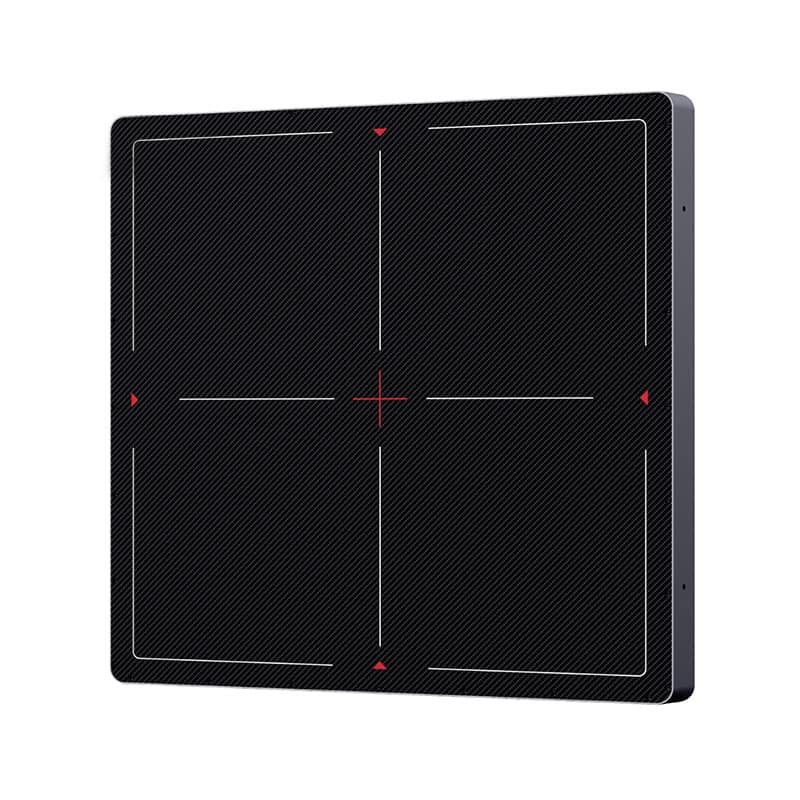

The Tiray NDT4343DL Industrial Flat Panel Detector is engineered as a “Champion of Full-Format Clarity for Industrial Intelligence,” dedicated to revolutionizing manufacturing inspection with its core promise: “Full-Format Clear Imaging Empowers Smart Manufacturing, Dynamic High-Definition Imaging Empowers Industry in Real Time.” Featuring a sleek black panel design with precise engineering aesthetics, it combines advanced a-Si sensor technology with versatile Perovskite/CsI/GOS scintillators. Optimized for industrial component inspection and real-time quality control, its rapid imaging and robust performance empower manufacturers to achieve uncompromised clarity and efficiency in high-volume production environments.
Key Features
- Full-Format Clear Imaging for Comprehensive Coverage: Delivers an unobstructed 430.0×430.0mm effective imaging area, capturing entire components or assemblies in a single scan to enable holistic defect analysis and process validation.
- Dynamic High-Definition Imaging, Real-Time Industrial Empowerment: Supports flexible frame rates of 4 fps (standard) and 12 fps (with 2×2 binning), balancing high-resolution detail with efficient dynamic inspection for real-time quality feedback on production lines.
- Advanced a-Si Sensor & Multi-Scintillator Versatility: Utilizes amorphous Silicon (a-Si) sensor for low-noise, high-sensitivity imaging, paired with configurable Perovskite/CsI/GOS scintillators to optimize detection for 160KV X-ray energy applications.
- Industrial-Grade Compact Design: Features a slim 15mm profile (460x460x15mm) and lightweight 4.5kg build, ensuring easy integration into automated systems or manual inspection stations while withstanding factory environments (5~35°C, 20~80% RH non-condensing).
- Low-Power, High-Efficiency Operation: Consumes only 12W power, minimizing energy costs and heat generation for sustained operation in continuous manufacturing settings.
- Seamless Gigabit Ethernet Integration: Equipped with a Gigabit Ethernet interface for stable, high-speed data transfer to analysis software or MES systems, ensuring smooth workflow integration for real-time decision-making.
Technical Specifications
| Parameter | Specification |
|---|---|
| Detector Model | NDT4343DL |
| Detector Type | a-Si |
| Scintillator Type | Perovskite / Cesium Iodide (CsI) / GOS |
| Dimensions (L x W x H) | 460 x 460 x 15 mm |
| Weight | 4.5 kg |
| Power Consumption | 12 W |
| Effective Imaging Area | 430.0 x 430.0 mm |
| Pixel Size | 139 μm |
| Pixel Matrix | 3072 x 3072 |
| Frame Rate | 4 fps / 12 fps (2×2 binning) |
| Limiting Spatial Resolution | 3.6 lp/mm |
| A/D Conversion | 16 bit |
| Data Interface | Gigabit Ethernet |
| Operating Temperature | 5 ~ 35 °C |
| Storage Temperature | 0 ~ 50 °C |
| Operating Humidity | 20 ~ 80% RH (Non-condensing) |
| Storage Humidity | 10 ~ 90% RH (Non-condensing) |
| Energy Range | 160 KV |
Primary Industrial Applications
The Tiray NDT4343DL is purpose-built for industrial inspection and real-time quality control, specializing in:
- Electronic Component & SMD/THT Part Inspection (160KV Range)
- Small Casting & Weldment Defect Detection (Porosity, Cracks)
- Production Line First Article Inspection (FAI) & Inventory Verification
- Light Alloy & Plastic Component Density Analysis
- Real-Time Process Monitoring in Automated Manufacturing Cells
As a “Champion of Full-Format Clarity for Industrial Intelligence,” the Tiray NDT4343DL transforms manufacturing inspection with unmatched imaging coverage and dynamic performance. By combining “Full-Format Clear Imaging Empowers Smart Manufacturing” with “Dynamic High-Definition Imaging Empowers Industry in Real Time,” it enables manufacturers to detect defects early, optimize processes, and elevate production precision—truly redefining industrial intelligence through clarity and speed.
