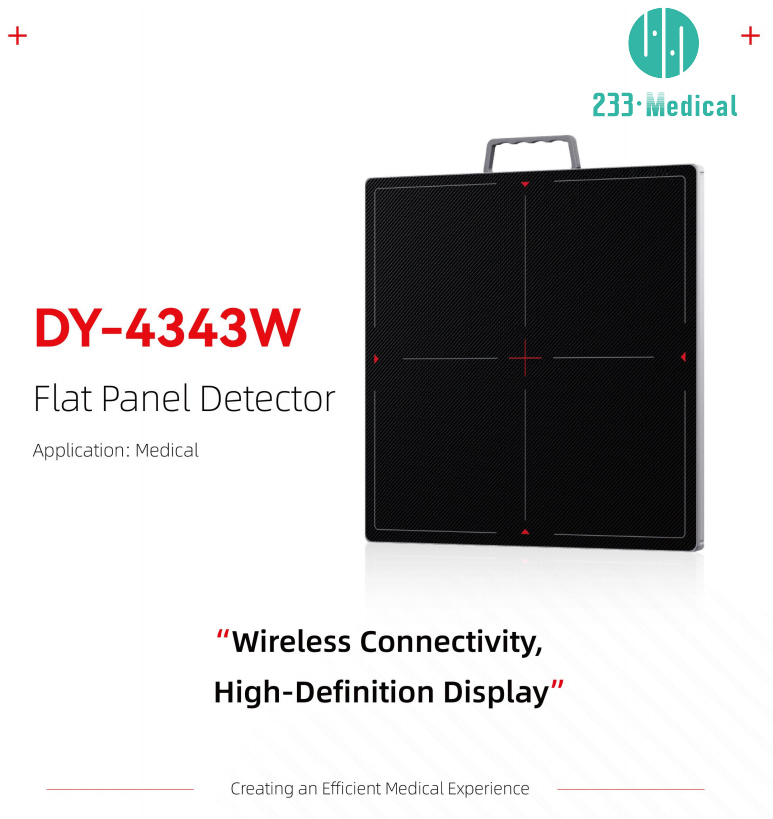

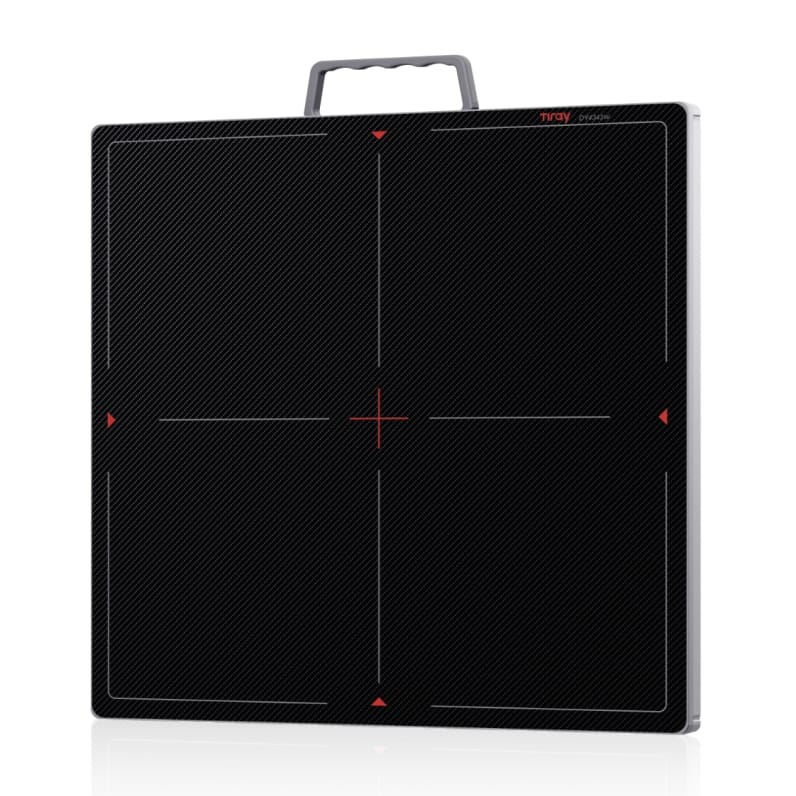

The DY-4343W Wireless Flat Panel Detector redefines efficiency in medical imaging by seamlessly integrating cutting-edge wireless technology with exceptional diagnostic clarity. Engineered to untether the radiographic workflow, it eliminates cable constraints, allowing for effortless positioning and enhanced patient comfort during examinations. Its advanced a-Si sensor coupled with a high-performance Perovskite/CsI scintillator delivers “High-Definition Display” quality, providing clinicians with the detailed, reliable images necessary for confident diagnosis. The DY-4343W is purpose-built to streamline clinical operations, from routine radiography to urgent bedside imaging, truly “Creating an Efficient Medical Experience” through intelligent, cable-free design.
Key Features
- True Wireless Connectivity: Unshackles the imaging process, enabling maximum mobility for flexible patient positioning, simplified room setup, and clutter-free environments, thereby accelerating workflow and improving operational efficiency.
- High-Definition Diagnostic Imaging: Delivers outstanding image clarity with a limiting resolution of 3.6 lp/mm, ensuring fine anatomical details are visible for accurate clinical assessment and diagnosis.
- Rapid Image Output: Achieves a swift image output time of just 1 second, enabling quick preview and assessment to improve patient throughput and support faster clinical decision-making.
- Ergonomic & Portable Design: Features a compact form factor (460x460x15mm), lightweight construction (3.7 kg), and an integrated handle for easy portability between exam rooms or for bedside imaging.
- Robust & Reliable Performance: Built with industrial-grade components and designed to operate reliably within a broad range of environmental conditions (5~35°C, 20~90% RH), ensuring consistent uptime in busy clinical settings.
- Seamless GigE Integration: Equipped with a standard Gigabit Ethernet interface for stable, high-speed image data transfer to PACS or viewing workstations, ensuring seamless integration into existing hospital IT infrastructure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Detector Model | DY-4343W |
| Sensor Type | a-Si |
| Scintillator Type | Perovskite / CsI |
| Dimensions (L x W x H) | 460 x 460 x 15 mm |
| Weight | 3.7 kg |
| Power Consumption | 12 W |
| Active Area | 430 x 430 mm |
| Pixel Size | 139 μm |
| Pixel Matrix | 3072 x 3072 |
| Image Output Time | 1 S |
| Limited Resolution | 3.6 lp/mm |
| A/D Conversion | 16 bit |
| Data Interface | GigE |
| Operating Temperature | 5 ~ 35 °C |
| Storage Temperature | -10 ~ 50 °C |
| Operating Humidity | 20 ~ 90% RH (Non-condensing) |
| Storage Humidity | 10 ~ 95% RH (Non-condensing) |
Recommended Applications
The DY-4343W is a versatile wireless detector designed to enhance imaging capabilities across a wide range of medical scenarios, including:
- General Radiography (Chest, Abdomen, Spine)
- Orthopedic and Trauma Imaging
- Portable / Bedside Examinations
- Emergency Room & ICU Imaging
- Operating Room & Surgical Guidance
Embrace the future of digital radiography with the DY-4343W. Its core promise of “Wireless Connectivity, High-Definition Display” directly translates to a smarter, faster, and more efficient diagnostic workflow. By removing physical barriers and delivering superior image quality, it empowers healthcare teams to provide exceptional patient care and truly create a more efficient medical experience.
