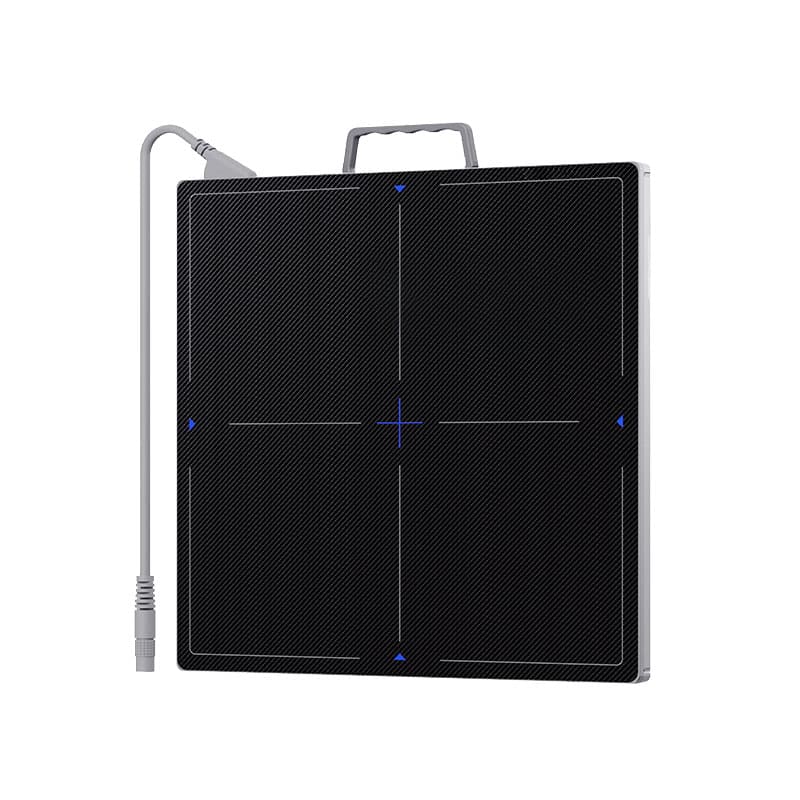

The LT-4343S Flat Panel Detector redefines medical imaging with its “Fearless Precision, Microscopic Clarity” promise, powered by advanced IGZO sensor technology. Designed for comprehensive diagnostic coverage, it combines a large 430x430mm active area with a high-resolution 4302×4302 pixel matrix to visualize fine anatomical details without compromise. Its sleek black design with silver accents and blue crosshair markers ensures precise positioning, while the optical fiber interface guarantees rapid data transfer. As “IGZO Empowers Precision Medicine,” the LT-4343S delivers unwavering reliability for confident clinical decisions.
Key Features
- Fearless Precision, Microscopic Clarity: Achieves a sharp 5.0 lp/mm limited resolution, enabling visualization of subtle tissue structures, micro-fractures, and fine bone trabeculae for accurate diagnosis.
- Large-Format Imaging Dominance: Features a 430x430mm active area, ideal for full-spine, long-leg, and chest radiography, eliminating the need for image stitching and streamlining workflow.
- Advanced IGZO Sensor Technology: Utilizes Indium Gallium Zinc Oxide (IGZO) for superior charge mobility and low noise, delivering high-contrast images with optimized dose efficiency for patient safety.
- Dual-Mode Frame Rate Flexibility: Supports 15fps standard imaging and 30fps with 2×2 binning, balancing high-resolution detail with efficient throughput for static and dynamic studies.
- High-Speed Optical Fiber Connectivity: Equipped with an optical fiber interface for rapid, stable transmission of 16-bit high-fidelity image data to PACS/workstations, minimizing latency.
- Medical-Grade Durability & Portability: Built with a slim 15mm profile (460x460x15mm) and lightweight 4.2kg design, ensuring easy integration into fixed or mobile X-ray systems while withstanding clinical environments (5~35°C, 20~90% RH).
Technical Specifications
| Parameter | Specification |
|---|---|
| Detector Model | LT-4343S |
| Sensor Type | IGZO |
| Scintillator Type | Perovskite / CsI |
| Active Area | 430 x 430 mm |
| Pixel Size | 100 μm |
| Pixel Matrix | 4302 x 4302 |
| Frame Rate | 15 fps / 30 fps (2×2 binning) |
| Limited Resolution | 5.0 lp/mm |
| A/D Conversion | 16 bit |
| Dimensions (L x W x H) | 460 x 460 x 15 mm |
| Weight | 4.2 kg |
| Power Consumption | 12 W |
| Data Interface | Optical Fiber |
| Operating Temperature | 5 ~ 35 °C |
| Storage Temperature | -10 ~ 50 °C |
| Operating Humidity | 20 ~ 90% RH (Non-condensing) |
| Storage Humidity | 10 ~ 95% RH (Non-condensing) |
Recommended Applications
The LT-4343S, with its “Fearless Precision” design, excels in diverse medical imaging scenarios:
- Full-Spine & Long-Leg Radiography
- Orthopedic & Trauma Imaging (Fractures, Joints)
- Chest & Abdominal Studies
- Dental Panoramic & Cephalometric Imaging
- Veterinary Diagnostic Radiography
- Portable/Bedside Examinations
Embrace the future of medical imaging with the LT-4343S Flat Panel Detector. As “IGZO Empowers Precision Medicine,” it delivers uncompromised clarity, large-format coverage, and rapid data transfer—all in a sleek, durable design. Fearless precision for microscopic clarity starts here.
