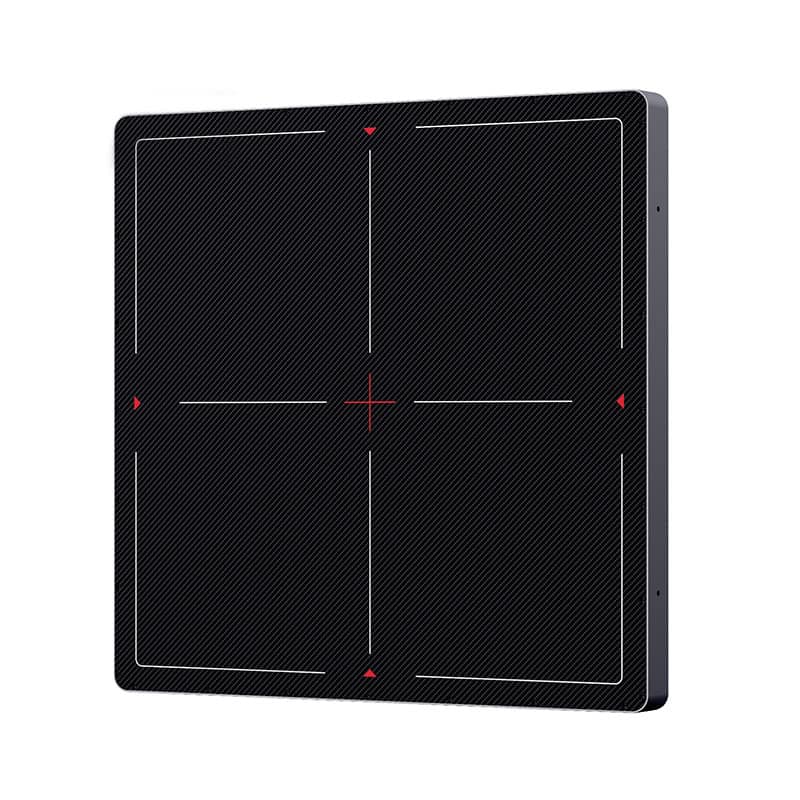

The Tiray NDT4343 Industrial Flat Panel Detector is engineered as an “Explorer of Future Industrial Imaging Technology,” dedicated to revolutionizing industrial material counting with its “Enhance Counting Efficiency, Master Production Precision” promise. Featuring a sleek black rectangular design with white crosshair markings and red triangular positioning indicators, it combines advanced a-Si sensor technology with versatile Perovskite/CsI/GOS scintillators. Optimized for industrial material counting and precision inspection, its rapid 1-second imaging and robust performance empower manufacturers to streamline workflows and ensure accuracy in high-volume production environments.
Key Features
- Industrial Counting Efficiency Redefined: Tailored for material counting (点料) applications, its large 430x430mm effective imaging area captures multiple components in a single scan, drastically reducing counting time and human error.
- High-Precision Imaging for Accuracy: Delivers a sharp 3.6 lp/mm limiting spatial resolution, ensuring clear visualization of small components, solder joints, and material inconsistencies critical for inventory management and quality control.
- 1-Second Rapid Image Output: Accelerates material counting cycles with instant imaging results, supporting real-time inventory checks and high-throughput production line demands.
- Robust Industrial Design: Features a compact 460x460x15mm housing with a slim 15mm profile, lightweight 4.2kg build, and durable construction to withstand factory environments (5~35°C, 20~80% RH non-condensing).
- Versatile Scintillator Options: Configurable with Perovskite, Cesium Iodide (CsI), or GOS scintillators to optimize detection efficiency for diverse material densities and X-ray energy ranges (up to 160KV).
- Seamless System Integration: Equipped with a Gigabit Ethernet interface for stable, high-speed data transfer to counting software or MES systems, ensuring smooth workflow integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Detector Model | NDT4343 |
| Detector Type | a-Si |
| Scintillator Type | Perovskite / CsI / GOS |
| Dimensions (L x W x H) | 460 x 460 x 15 mm |
| Weight | 4.2 kg |
| Power Consumption | 12 W |
| Effective Imaging Area | 430 x 430 mm |
| Pixel Size | 139 μm |
| Pixel Matrix | 3072 x 3072 |
| Image Output Time | 1 s |
| Limiting Spatial Resolution | 3.6 lp/mm |
| A/D Conversion | 16 bit |
| Data Interface | Gigabit Ethernet |
| Operating Temperature | 5 ~ 35 °C |
| Storage Temperature | 0 ~ 50 °C |
| Operating Humidity | 20 ~ 80% RH (Non-condensing) |
| Storage Humidity | 10 ~ 90% RH (Non-condensing) |
| Energy Range | 160 KV |
Primary Industrial Applications
The Tiray NDT4343 is purpose-built for industrial material counting and precision inspection, including:
- Electronic Component Counting (SMD/THT Parts)
- Inventory Management & Stocktaking Automation
- Small Batch Material Verification
- Production Line First Article Inspection (FAI)
- General Industrial Precision Imaging (160KV Range)
As an “Explorer of Future Industrial Imaging Technology,” the Tiray NDT4343 transforms material counting with unmatched efficiency and precision. By combining rapid imaging, high-resolution clarity, and robust design, it empowers manufacturers to master production accuracy and elevate industrial automation—truly enhancing counting efficiency, mastering production precision.
