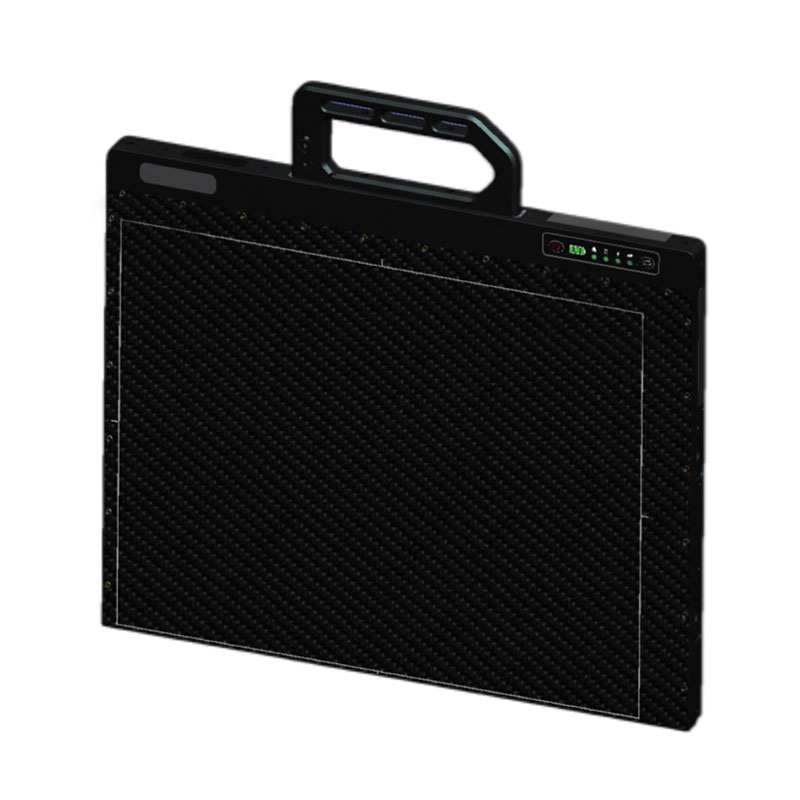

The Tiray NDT2430W Industrial Flat Panel Detector revolutionizes non-destructive testing (NDT) with its “High-Definition Discernible, Wireless Interconnection” promise, engineered to reshape industrial-grade imaging performance. Featuring advanced a-Si sensor technology and versatile Perovskite/CsI/GOS scintillator options, it delivers exceptional clarity for defect detection in critical components. Its sleek black design, compact form factor (345x335x20mm), and dual Gigabit Ethernet/Wi-Fi connectivity eliminate cable constraints, empowering manufacturers with flexible, high-throughput imaging for precision quality control.
Key Features
- Wireless Interconnection Freedom: Integrated Wi-Fi connectivity untethers imaging workflows, enabling flexible detector placement, simplified setup, and clutter-free environments for dynamic industrial inspections.
- High-Definition Discernible Imaging: Achieves a sharp 5.88 lp/mm limiting spatial resolution, visualizing micro-defects, fine cracks, and material inconsistencies with clarity critical for industrial quality assurance.
- Rapid 1-Second Image Output: Delivers instant imaging results to accelerate inspection cycles, boost production line throughput, and support real-time decision-making in high-volume manufacturing.
- Advanced a-Si Sensor Technology: Utilizes amorphous Silicon (a-Si) sensor for reliable, low-noise performance with optimized detective quantum efficiency (DQE) across diverse X-ray energies.
- Versatile Scintillator Options: Configurable with Perovskite, Cesium Iodide (CsI), or GOS scintillators to tailor detection efficiency for specific material densities and X-ray energy ranges (250KV/350KV).
- Dual-Mode High-Speed Connectivity: Equipped with both Gigabit Ethernet and Wi-Fi interfaces for stable, flexible data transfer to analysis software, supporting automated or manual inspection systems.
- Industrial-Grade Durability: Built with a slim 20mm profile (345x335x20mm) and robust design (4kg/6.5kg weight variants), operating reliably in harsh environments (5~35°C, 20~80% RH non-condensing).
Technical Specifications
| Parameter | Specification |
|---|---|
| Detector Model | NDT2430W |
| Detector Type | a-Si |
| Scintillator Type | Perovskite / CsI / GOS |
| Dimensions (L x W x H) | 345 x 335 x 20 mm |
| Weight | 4 kg / 6.5 kg |
| Power Consumption | 12 W |
| Effective Imaging Area | 239.4 x 304.6 mm |
| Pixel Size | 85 μm |
| Pixel Matrix | 2816 x 3584 |
| Bottom Dead Zone | 4 mm |
| Image Output Time | 1 s |
| Limiting Spatial Resolution | 5.88 lp/mm |
| A/D Conversion | 16 bit |
| Data Interface | Gigabit Ethernet / Wi-Fi |
| Operating Temperature | 5 ~ 35 °C |
| Storage Temperature | 0 ~ 50 °C |
| Operating Humidity | 20 ~ 80% RH (Non-condensing) |
| Storage Humidity | 10 ~ 90% RH (Non-condensing) |
| Energy Range | 250 KV / 350 KV |
Primary Industrial Applications
The Tiray NDT2430W is engineered for precision NDT across demanding industrial sectors, including:
- Electronics & PCB (Printed Circuit Board) Inspection
- Battery Cell & Module Quality Control (NDT)
- Casting, Welding & Forging Defect Detection
- Automotive & Aerospace Component Analysis
- Additive Manufacturing (3D Printing) Part Validation
Choose the Tiray NDT2430W Industrial Flat Panel Detector to reshape your imaging performance. With “High-Definition Discernible, Wireless Interconnection” capabilities, it empowers manufacturers to detect defects with confidence, optimize workflows through cable-free flexibility, and uphold the highest standards of industrial quality assurance.
