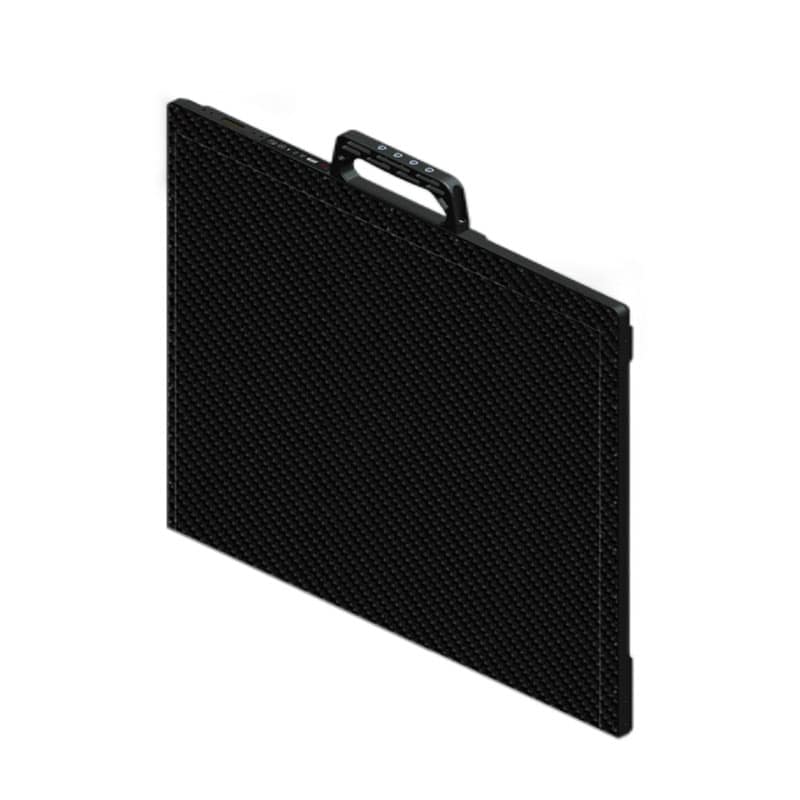

The Tiray NDT4343WPE Industrial Flat Panel Detector stands as the “Guardian of Intelligent Security Imaging,” engineered specifically for explosive ordnance disposal (EOD) and security screening applications. With its sleek black texture surface, precise crosshair markers, and compact form factor, it delivers “Precise Identification, Safeguarding Public Safety” through advanced a-Si sensor technology and versatile scintillator options. Designed for rugged field use, its IP65 protection rating, 4-hour battery续航, and dual wired/wireless connectivity empower security professionals with reliable, high-clarity imaging for threat detection.
Key Features
- Guardian of Intelligent Security Imaging: Tailored for EOD and security screening, it combines a 430.2×430.2mm large-format imaging area with 5.0 lp/mm high resolution to visualize hidden threats, components, or anomalies with exceptional clarity.
- Precise Identification, Safeguarding Public Safety: Achieves sharp 5.0 lp/mm limiting spatial resolution, enabling detection of micro-details in suspicious objects, ensuring no critical threat goes unnoticed during security operations.
- Dual-Mode Connectivity for Flexible Deployment: Supports 2 fps wired frame rate and static wireless imaging, paired with Gigabit Ethernet/Wi-Fi interfaces for seamless data transfer in field or fixed security checkpoints.
- Rugged Field-Ready Design: Features IP65 protection rating, -20~55°C wide operating temperature range, and 4-hour battery续航, built to withstand harsh outdoor EOD environments (20~80% RH non-condensing).
- Versatile Scintillator Compatibility: Configurable with Perovskite, Cesium Iodide (CsI), or GOS scintillators to optimize detection efficiency for diverse threat materials and X-ray energy ranges.
- Compact & Lightweight for Mobility: Slim 15mm profile (465x460x15mm excluding handle) and 4kg weight ensure easy handling during mobile security operations or field deployments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Detector Model | NDT4343WPE |
| Detector Type | a-Si |
| Scintillator Type | Perovskite / Cesium Iodide (CsI) / GOS |
| Dimensions (L x W x H) | 465 x 460 x 15 mm (excluding handle) |
| Weight | 4 kg |
| Power Consumption | 15 W |
| Effective Imaging Area | 430.2 x 430.2 mm |
| Pixel Size | 100 μm |
| Pixel Matrix | 4302 x 4302 |
| Bottom Dead Zone | 3 mm |
| Frame Rate | 2 fps (Wired) / Static (Wireless) |
| Limiting Spatial Resolution | 5.0 lp/mm |
| A/D Conversion | 16 bit |
| Data Interface | Gigabit Ethernet / Wi-Fi |
| Operating Temperature | -20 ~ 55 °C |
| Storage Temperature | 0 ~ 50 °C |
| Operating Humidity | 20 ~ 80% RH (Non-condensing) |
| Storage Humidity | 10 ~ 90% RH (Non-condensing) |
| Protection Rating | IP 65 |
| Battery续航 | 4 hours |
Primary Security Applications
The Tiray NDT4343WPE is purpose-built for high-stakes security and EOD missions, including:
- Explosive Ordnance Disposal (EOD) Threat Analysis
- Security Checkpoint Suspicious Object Screening
- Public Event Bomb Disposal Support
- Military/IED (Improvised Explosive Device) Detection
- Critical Infrastructure Security Inspections
As the “Guardian of Intelligent Security Imaging,” the Tiray NDT4343WPE redefines EOD and security screening with “Precise Identification, Safeguarding Public Safety.” By combining rugged field durability, high-resolution clarity, and flexible deployment options, it empowers security teams to detect threats confidently—truly making it the first line of defense in public safety operations.
