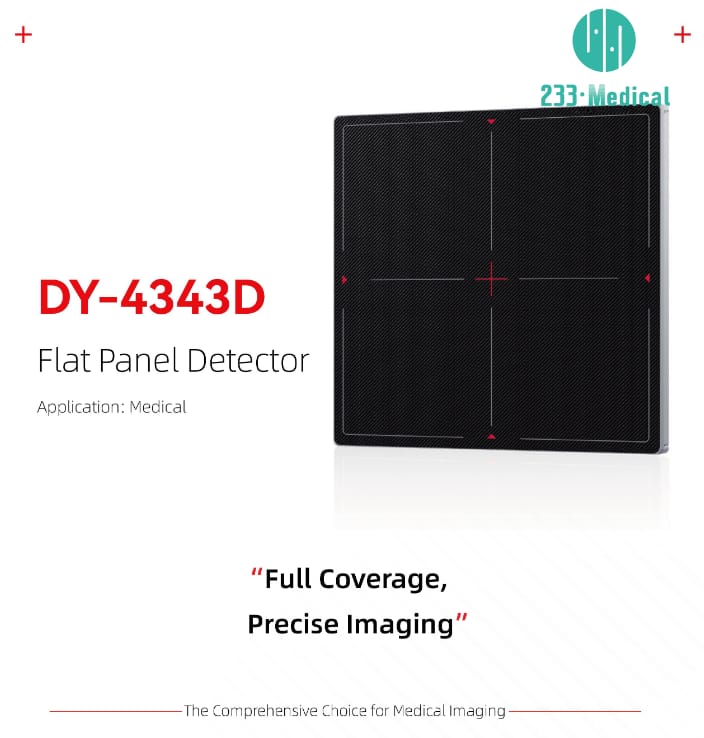

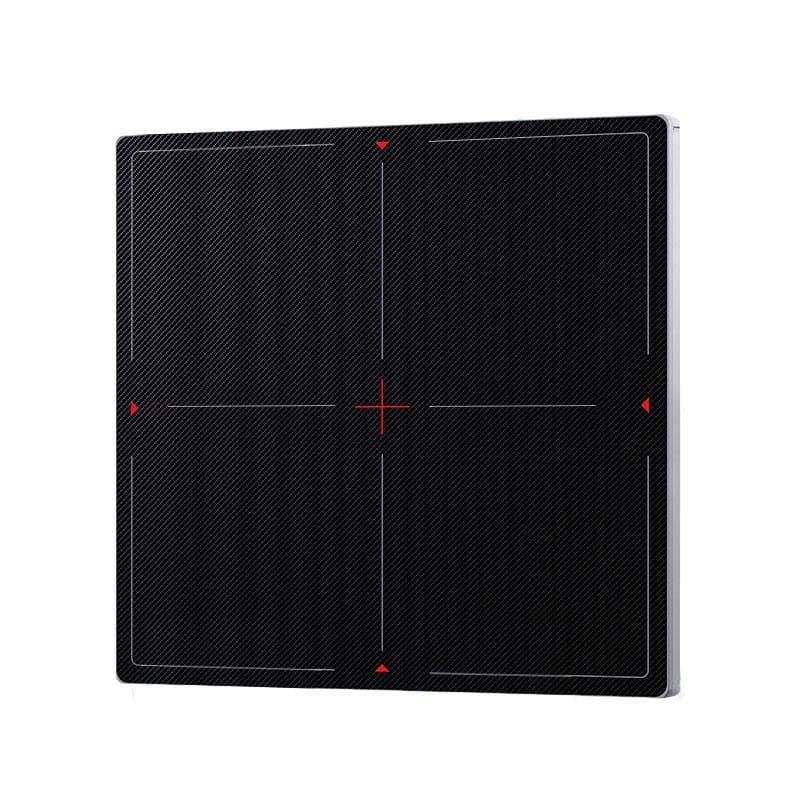

The DY-4343D Flat Panel Detector embodies the principle of “Full Coverage, Precise Imaging,” establishing itself as the comprehensive choice for modern medical diagnostics. Engineered to deliver exceptional versatility, it features a unique dual-resolution mode, seamlessly switching between high detail and standard resolution to match diverse clinical needs. Its expansive 430 x 430 mm active area provides extensive anatomical coverage, ideal for full-body and large-area imaging. Combining advanced a-Si sensor technology with a high-performance Perovskite/Si scintillator, the DY-4343D delivers consistently clear, reliable images, empowering healthcare professionals with the confidence needed for accurate diagnosis and treatment planning across a wide spectrum of applications.
Key Features
- Dual-Resolution Versatility: Uniquely adaptable, offering two precision modes: a high-resolution 5.0 lp/mm setting for fine detail and a 3.6 lp/mm standard mode, allowing optimal imaging based on clinical requirement.
- Expansive Imaging Coverage: Features a large 430 x 430 mm active area, making it perfectly suited for comprehensive examinations such as full-spine, long-leg, and chest radiography, reducing the need for stitching.
- Advanced Imaging Chain: Integrates a high-quality amorphous Silicon (a-Si) sensor with a Perovskite/Si scintillator to achieve superior detective quantum efficiency (DQE), resulting in images with excellent contrast and low noise.
- Rapid Image Output: Delivers clear diagnostic images swiftly, supporting efficient workflow and faster patient throughput in busy clinical environments.
- Robust & Stable Connectivity: Equipped with a reliable Gigabit Ethernet (GigE) interface for fast and stable transmission of high-fidelity image data to PACS or diagnostic workstations.
- Durable, Clinical-Grade Design: Built to withstand the demands of daily clinical use, with a specified operating temperature and humidity range ensuring consistent performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Detector Model | DY-4343D |
| Sensor Type | a-Si |
| Scintillator Type | Perovskite / Si |
| Dimensions (L x W x H) | 470 x 470 x 33 mm |
| Weight | 4.8 kg |
| Power Consumption | 12 W |
| Active Area | 430 x 430 mm |
| Pixel Size | 100 μm / 139 μm |
| Pixel Matrix | 4302 x 4302 / 3072 x 3072 |
| Frame Rate | 4 fps |
| Limited Resolution | 5.0 lp/mm / 3.6 lp/mm |
| A/D Conversion | 16 bit |
| Data Interface | GigE |
| Operating Temperature | 5 ~ 35 ℃ |
| Storage Temperature | -10 ~ 50 ℃ |
| Operating Humidity | 20 ~ 90% RH (Non-condensing) |
| Storage Humidity | 10 ~ 95% RH (Non-condensing) |
| Power Supply | 100 ~ 240 VAC |
Recommended Applications
The DY-4343D, with its large area and dual-resolution capability, is the ideal detector for a comprehensive range of radiographic examinations, including:
- Full-Spine and Long-Leg Radiography
- Chest and Abdominal Imaging
- Orthopedic and Trauma Studies
- Table-Based General Radiography
- Portable / Bedside Examinations
- Veterinary Radiology (for large animals)
The DY-4343D Flat Panel Detector redefines versatility in medical imaging. By offering both full coverage and precise imaging in one adaptable device, it streamlines workflows, adapts to various clinical challenges, and provides the diagnostic confidence needed for superior patient care. It is truly the comprehensive choice for advancing your imaging capabilities.
